  • Model Number: Medusa PRO Box
Product Description



Medusa PRO Box is a professional phone flashing and mobile unlocking tool that lets you work with a wide range of Samsung, Huawei, LG, Motorola, Siemens, Sony Ericsson, Vodafone, ZTE and other mobile devices throughJTAG, USB and MMC interfaces. The main intended purpose of Medusa PRO Box is repairing dead boots of the devices (mobile phones, PDAs, modems, etc.) or these devices recovery, until they become fully operational. Medusa PRO Box Software is a windows application for Medusa PRO Box, provides convenient interface for end user.

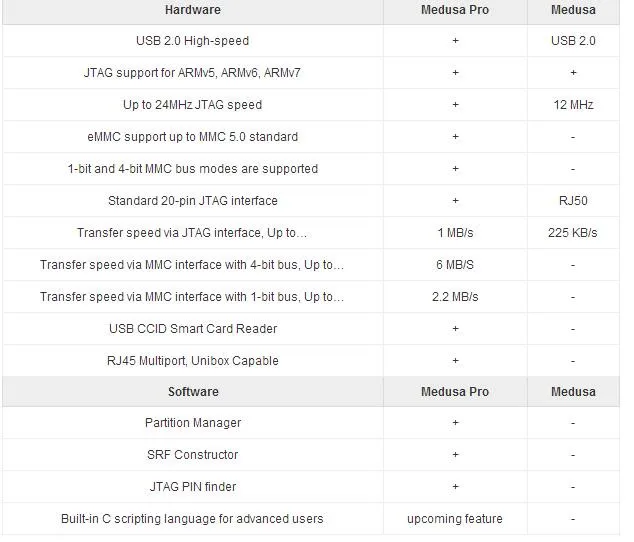

Medusa PRO - Hardware Features:

Medasu Box

    Fast USB 2.0 high-speed hardware
    JTAG support for ARMv5, ARMv6, ARMv7
    Up to 24MHz JTAG speed
    Transfer speed via JTAG interface up to 1 MB / s
    eMMC support up to MMC 5.0 standard
    1-bit and 4-bit MMC bus modes are supported
    Standard 20-pin JTAG interface
    Built-in JTAG PIN finder
    Built-in USB CCID smart card reader
    Built-in RJ45 Multiport, Unibox capable

Medusa PRO - Software Features:

    Full-featured professional-grade Medusa PRO software
    Software fully supports all operations (Read, Write and Edit) with any required memory sections through JTAG, USB and MMC interfaces.
    Easy and smart Graphical User Interface (GUI), suitable for beginners and for experts
    Fast repair of target device with Smart-Repair-Files (SRF)
    SRF contains partition data and other necessary data (help files and diagrams)
    Data in SRF is compressed (less to download, quicker to work)
    Built-in Partition Manager
    Now you can edit and save required for your work partitions, this leads to convenient and easy way to service devices. In addition, with Partition Manager you may open Full Flash file in binary format, edit it and write it back to the device.
    Simple per-partition operations (Read, Write, Erase, Edit) of the target storage device
    Built-in Smart-Repair-File Constructor with Partition Manager for creating custom SRFs
    SRF file could be taken from the device or read out from Full Flash file in binary format. This feature allows the user (without developer\'s assistance) add devices to the list of supported models, which are not officially supported yet. User will be allowed to upload that custom SRF file into separate section of Support Zone for further analysis by developers. If custom SRF file would be recognized as a legitimate and correct, name (or nickname) of the author will be presented in the following update. Thus, user has been given the opportunity to participate in the development of Medusa PRO and became known in certain circles.
    Built-in Download manager
    Allows you to download files directly from the software.
    NAND, OneNAND, NOR and eMMC storage devices are supported via JTAG interface
    NAND, OneNAND and eMMC storage devices are supported via USB interface
    eMMC storage devices are supported via MMC interface
    Up to 1 MB / s transfer speed via JTAG interface *
    Up to 6 MB / s transfer speed via MMC interface with 4-bit bus *
    Up to 2.2 MB / s transfer speed via MMC interface with 1-bit bus *
    Windows 10 compatible software

* All measurements were done on ASUS M5A97 R2 motherboard with AMD FX-8370 CPU and with Medusa PRO Box connected to USB 3.0 port, located directly on motherboard.
Medusa PRO Box - Supported CPUs:

    Qualcomm MSM6245
    Qualcomm MSM6246
    Qualcomm MSM6250 (A)
    Qualcomm MSM6260
    Qualcomm MSM6270
    Qualcomm MSM6275
    Qualcomm MSM6280 (A)
    Qualcomm MSM6281
    Qualcomm MSM6290
    Qualcomm MSM6800
    Qualcomm MDM6270
    Qualcomm MDM8200
    Qualcomm QSC1100
    Qualcomm QSC6010
    Qualcomm QSC6270
    Qualcomm MSM7200 (A, B)
    Qualcomm MSM7201 (A, B)
    Qualcomm MSM7225 (A)
    Qualcomm MSM7227 (A)
    Qualcomm MSM7227T
    Qualcomm MSM7600
    Qualcomm MSM7625
    Qualcomm MSM8225
    Qualcomm MSM8227
    Qualcomm QSD8250
    Qualcomm QSD8650
    Qualcomm APQ8060
    Qualcomm APQ8064
    Qualcomm APQ8064T
    Qualcomm MSM8260
    Qualcomm MSM8660
    Qualcomm MSM8930
    Qualcomm MSM8930 (A, B)
    Qualcomm MSM8960
    Samsung S3C6410
    Samsung S5P6442
    Samsung S5PC110
    Samsung S5PC210
    Samsung S5PV310
    Broadcom BCM2133
    Broadcom BCM2153
    Broadcom BCM2155
    Broadcom BCM21654
    HiSilicon HI6731
    Marvell PXA270
    Marvell PXA312
    ST-Ericsson ST-U8500
    ST-Ericsson ST-U9500

Medusa PRO Box - Supported eMMC Models:

    Samsung eMMC
    Sandisk eMMC
    Pretec eMMC
    Hynix eMMC
    Unknown (Sandisk) eMMC
    Toshiba eMMC
    Micron eMMC

Medusa PRO Box - Supported Flash Vendors:

    AMD
    Fujitsu
    Atmel
    ST Micro
    Micron
    Silicon7
    Intel
    Toshiba
    Sharp
    Samsung
    Hynix

Medusa PRO Box - Supported Flash Devices:

    AMD / Spansion NOR
    eMMC
    Hynix eMMC
    Hynix H8BCS0QG0MMR
    Hynix H8BES0WU0MCR
    Hynix HYH0SSJ0MF3P
    Hynix H8ACSOPL0MCR
    Hynix HYC0SEH0MF3P
    Hynix H8BES0UQ0MCR
    Intel NOR
    Micron eMMC
    Micron 1024Mb
    Micron 256Mb
    Micron MT29F1G08
    Micron MT29F1G16
    Micron 512Mb
    Pretec eMMC
    Samsung eMMC
    Samsung NOR
    Samsung 1024Mb
    Samsung 1024Mb
    Samsung Flex-OneNAND 512Mb
    Samsung OneNAND 1024Mb
    Samsung Flex-OneNAND 1024Mb
    Samsung Flex-OneNAND 1024Mb DDP
    Samsung OneNAND KFH2G16Q2M
    Samsung OneNAND KFH2G16Q2M
    Samsung KFH2G16Q4M
    Samsung OneNAND KFW4G16Q2M DDP Demux
    Samsung OneNAND KFW4G16Q2M DDP
    Samsung OneNAND KFG4GH6Q4M
    Samsung K5G1G13ACH
    Samsung K9F1208
    Samsung K9F1208
    Samsung K9K1216
    Samsung K9F2808
    Samsung K9F2808
    Samsung KBE00500AM
    Samsung K9F5608
    Samsung KF92G16
    Samsung 1024Mb
    Samsung 512Mb
    Samsung 512Mb
    Samsung 512Mb
    Samsung 512Mb
    Samsung K9K2G08
    Samsung K9F5608
    Samsung K91G08
    Samsung K91G08
    Samsung KBE00S00AM
    Samsung K9LAG08U0M
    Sandisk eMMC
    ST Electronics NOR
    ST Micro 128MB
    ST Micro 512MB
    Toshiba TC58NW
    Toshiba TC58512FT
    Toshiba TY9000AC10AOBG
    Toshiba TCDAM82F1
    Toshiba TC58DDM92F2
    Toshiba TY9000A800J0GG
    Toshiba TC58NYG0S3CXGJS
    Toshiba TYA000BC00DOGG
    Toshiba TH58NYG2S8C
    Toshiba TC58NYG1S8C
    Toshiba TH58NYG2S8C
    Toshiba TH58NYG2S3C
    Toshiba TC58512FT
    Unknown (Sandisk) eMMC
    Unknown eMMC
    Medusa PRO Box - Package Contains: *
    Medusa Pro (box with a smart card) - 1 pc.
    Micro UART cable (with 530K resistor) for Samsung C3303K - 1 pc.
    Optimus cable - 1 pc.
    Medusa Pro JIG Adapter - 1 pc.
    Copper wire 0.1 mm - 1 pc.
    USB A-B cable - 1 pc.
    6 months of warranty

Packaging Details
  • Unit Type: piece
  • Package Weight: 0.3kg (0.66lb.)
  • Package Size: 13cm x 14cm x 13cm (5.12in x 5.51in x 5.12in)
